Injection Molding Machine Moving & Installation Services
Precision rigging for the equipment that keeps your operation moving.
Injection molding machine removal, relocation, transportation, and installation throughout the United States.
Injection Molding Machine Moving & Installation Services
Safely Moving, Installing, and Relocating Injection Molding Machines Nationwide
Silver Lake Industrial Services provides turnkey injection molding machine moving, rigging, relocation, and installation for manufacturers throughout the United States. We provide a single point of contact to manage your project nationwide, from origin to destination and everywhere in between. From individual machine moves to complete molding-cell and plant relocations, our crews coordinate the equipment, personnel, and logistics required to move heavy injection molding machinery safely and efficiently.
Injection molding machines present unique rigging challenges because of their size, weight distribution, machine configuration, and sensitive mechanical, hydraulic, and electrical components. Silver Lake plans each move around the specific machine, facility conditions, access requirements, and production schedule.
Our services include removal of existing machines, internal plant moves, plant-to-plant relocation, new machine installation, transportation coordination, precision placement, and complete production-cell relocation.
Complete Injection Molding Machine Moving Services
New Injection Molding Machine Installation
Installing a new injection molding machine requires more than unloading and positioning the equipment. Silver Lake Industrial Services coordinates the rigging and placement process from delivery through final positioning.
Our crews can unload machines from trucks, move them through the facility, navigate restricted access areas, and position equipment at its designated production location. Hydraulic gantries, heavy-capacity forklifts, machinery skates, and other specialized rigging systems can be used depending on machine weight, facility conditions, and available clearance.
When machines arrive in multiple sections, our millwrights can assist with assembly and positioning to prepare the equipment for final utility connections and commissioning.
Existing Machine Relocation
Production changes, facility expansions, and equipment upgrades often require injection molding machines to be repositioned within an existing plant.
Silver Lake can disconnect and prepare equipment for relocation, move machines through active manufacturing facilities, and precisely place them in their new production location.
Careful planning helps protect the machine, surrounding equipment, and facility while minimizing disruption to ongoing operations.
Plant-to-Plant Injection Molding Machine Relocation
When injection molding equipment needs to move between facilities, Silver Lake can coordinate the complete relocation.
Services can include equipment preparation, disassembly as required, rigging, loading, transportation coordination, unloading, positioning, reassembly and installation at the destination facility.
This coordinated approach provides manufacturers with a single industrial moving partner throughout the relocation.
Complete Injection Molding Cell Relocation
Moving an injection molding operation often involves much more than the molding machine itself.
Silver Lake can relocate and install complete molding cells and associated equipment, including:
- Injection molding machines
- Robots and automation
- Material dryers
- Resin handling systems
- Granulators
- Conveyors
- Mold temperature controllers
- Chillers and auxiliary equipment
- Safety guarding
- Platforms and access equipment
Coordinating the entire production cell helps manufacturers maintain equipment relationships and streamline installation at the new location.
Injection Molding Machines We Move
Silver Lake Industrial Services handles a wide range of injection molding equipment, from individual machines to large-tonnage molding systems and complete automated production cells.
Hydraulic Injection Molding Machines
Hydraulic molding machines can contain substantial hydraulic systems, pumps, reservoirs, and clamping assemblies that affect both machine weight and center of gravity.
Our rigging plans account for these characteristics when lifting, transporting, and positioning hydraulic injection molding equipment.
Electric Injection Molding Machines
All-electric molding machines use precision servo motors and electronic control systems rather than conventional hydraulic systems for many machine functions.
Careful handling and controlled movement help protect sensitive components during removal, transportation, and installation.
Hybrid Injection Molding Machines
Hybrid machines combine hydraulic and electric technologies and may have unique weight distributions and equipment configurations.
Silver Lake evaluates the individual machine and facility before determining the appropriate lifting, rigging, and moving methods.
Large-Tonnage Injection Molding Machines
Large molding machines can present significant challenges because of their overall length, weight and clamping-force capacity.
Moving these machines may require hydraulic gantries, high-capacity forklifts, specialized lifting systems and careful load distribution. Facility clearances, floor loading and equipment access are evaluated before the move begins.
Two-Platen and Multi-Component Molding Machines
Two-platen, multi-component and other specialized molding machines may have unusual dimensions, configurations or centers of gravity.
Silver Lake develops equipment-specific rigging plans based on machine specifications, lifting points, facility conditions and transportation requirements.
Industries We Serve
Injection molding supports manufacturing across a wide range of industries. Silver Lake Industrial Services provides injection molding machine moving, rigging, relocation, and installation for manufacturers throughout the United States, including automotive, medical, consumer products, packaging, electronics, and industrial manufacturing facilities.
Our crews understand the challenges of moving heavy molding equipment in active production environments and coordinate projects to minimize disruption while protecting equipment, facilities, and production schedules.
Injection Molding Machine Moving & Installation Process
Every injection molding machine move begins with planning. Machine specifications, weight, dimensions, center of gravity, lifting points, facility access, and production requirements are evaluated before equipment is moved.
The resulting rigging plan determines how the machine will be prepared, lifted, transported, and positioned.
Lift Planning and Engineering
Machine Weight & Configuration
Injection molding machines can range from relatively compact production equipment to extremely large machines weighing many tons.
The injection unit, clamping unit, hydraulic systems, motors, and other components can create uneven weight distribution. Understanding that distribution is critical when selecting lifting equipment and rigging points.
Manufacturer-Approved Lifting Points
Whenever available, machine documentation and manufacturer-designated lifting points are incorporated into the rigging plan.
Rigging is positioned to control the load while reducing the risk of damage to machine frames, precision components, hydraulic systems, and electrical equipment.
Facility Constraints
Injection molding machines are frequently installed in facilities where overhead clearance, aisle width, door openings, or surrounding production equipment limit conventional lifting options.
Silver Lake evaluates these conditions before the move and selects equipment appropriate for the available space.
Equipment Preparation
Before moving an injection molding machine, the equipment must be properly prepared.
Depending on the project, preparation may include securing moving components, protecting controls and electrical cabinets, disconnecting utilities, removing auxiliary equipment, and preparing machine sections for lifting or transportation.
Large machines may require partial disassembly to meet facility or transportation requirements. Components can be labeled and organized to support efficient reassembly at the destination.
Industrial Rigging Solutions for Injection Molding Machines
The appropriate rigging system depends on machine weight, dimensions, access and facility conditions.

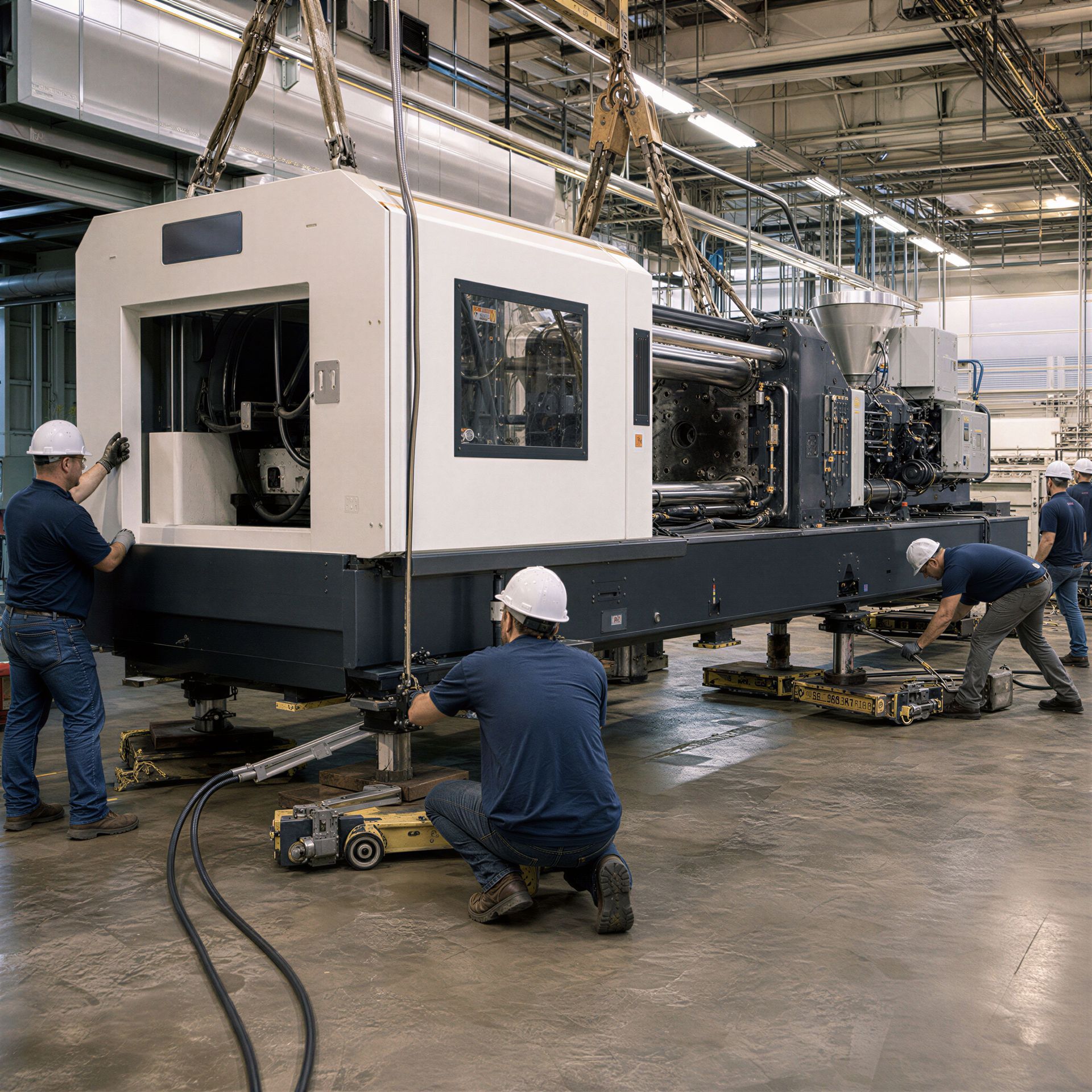

Hydraulic Gantry Systems
Hydraulic gantries are particularly useful for moving large injection molding machines in facilities where overhead cranes are unavailable or conventional mobile cranes cannot operate.
Gantries provide controlled lifting and lowering while allowing crews to work within restricted interior spaces.
Heavy-Capacity Forklifts
High-capacity industrial forklifts can be used for unloading, moving, and positioning molding machines when load capacity and facility access allow.
Proper load evaluation and machine support are essential because injection molding equipment can have long footprints and uneven weight distribution.

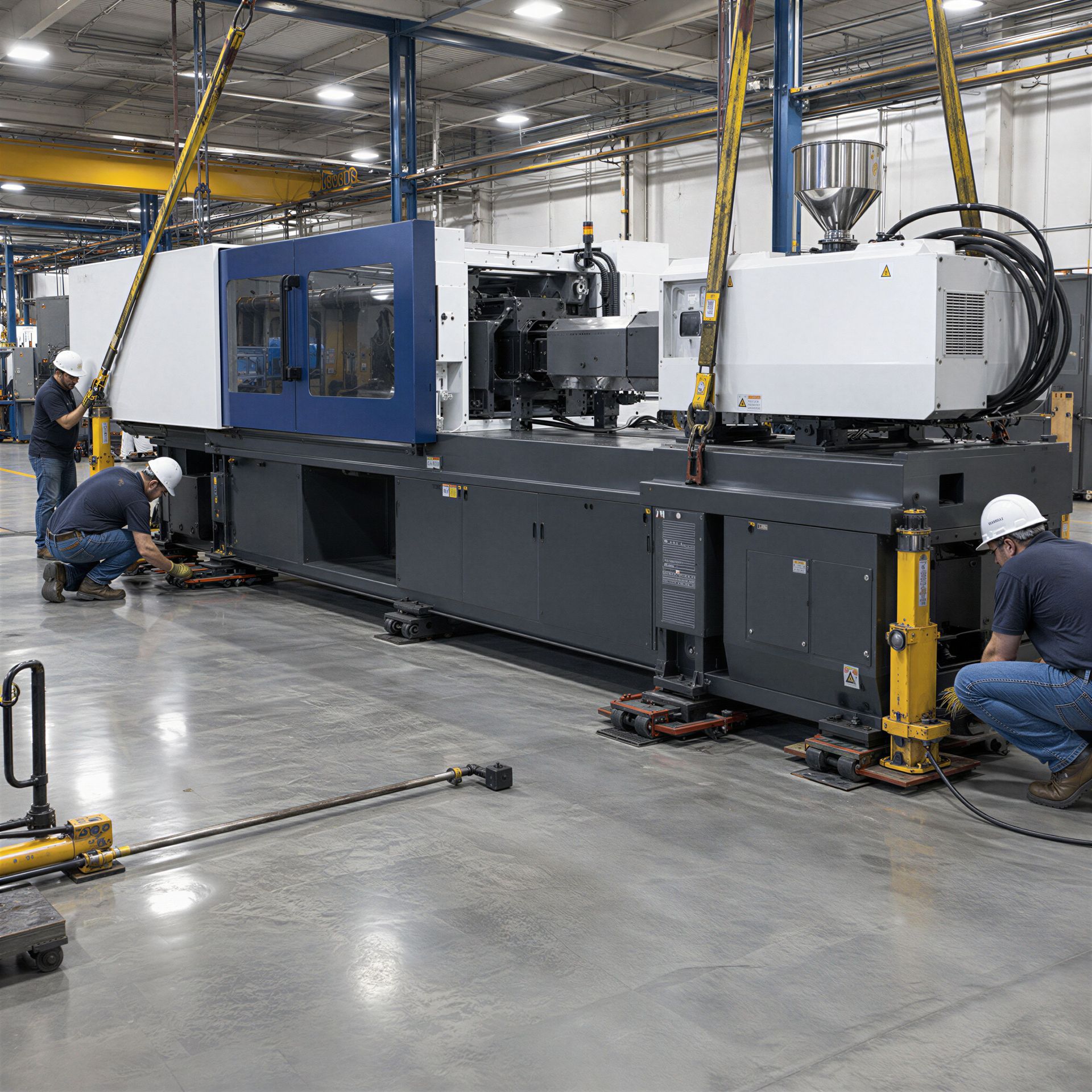

Mobile Cranes
Where facility access and overhead clearance permit, mobile cranes may be used for loading, unloading or positioning injection molding equipment. Lift planning considers machine weight, lifting configuration, crane capacity and site conditions.

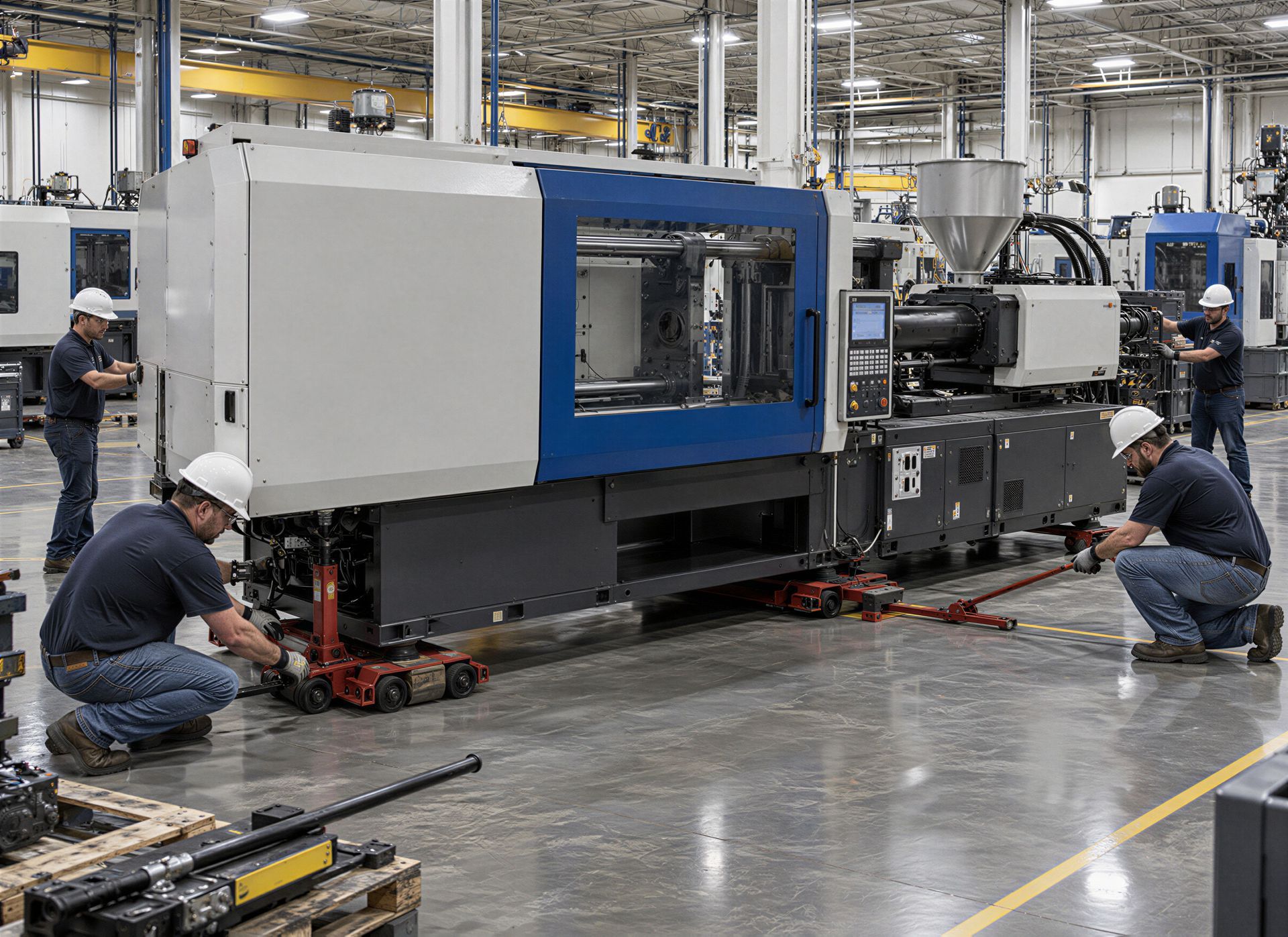

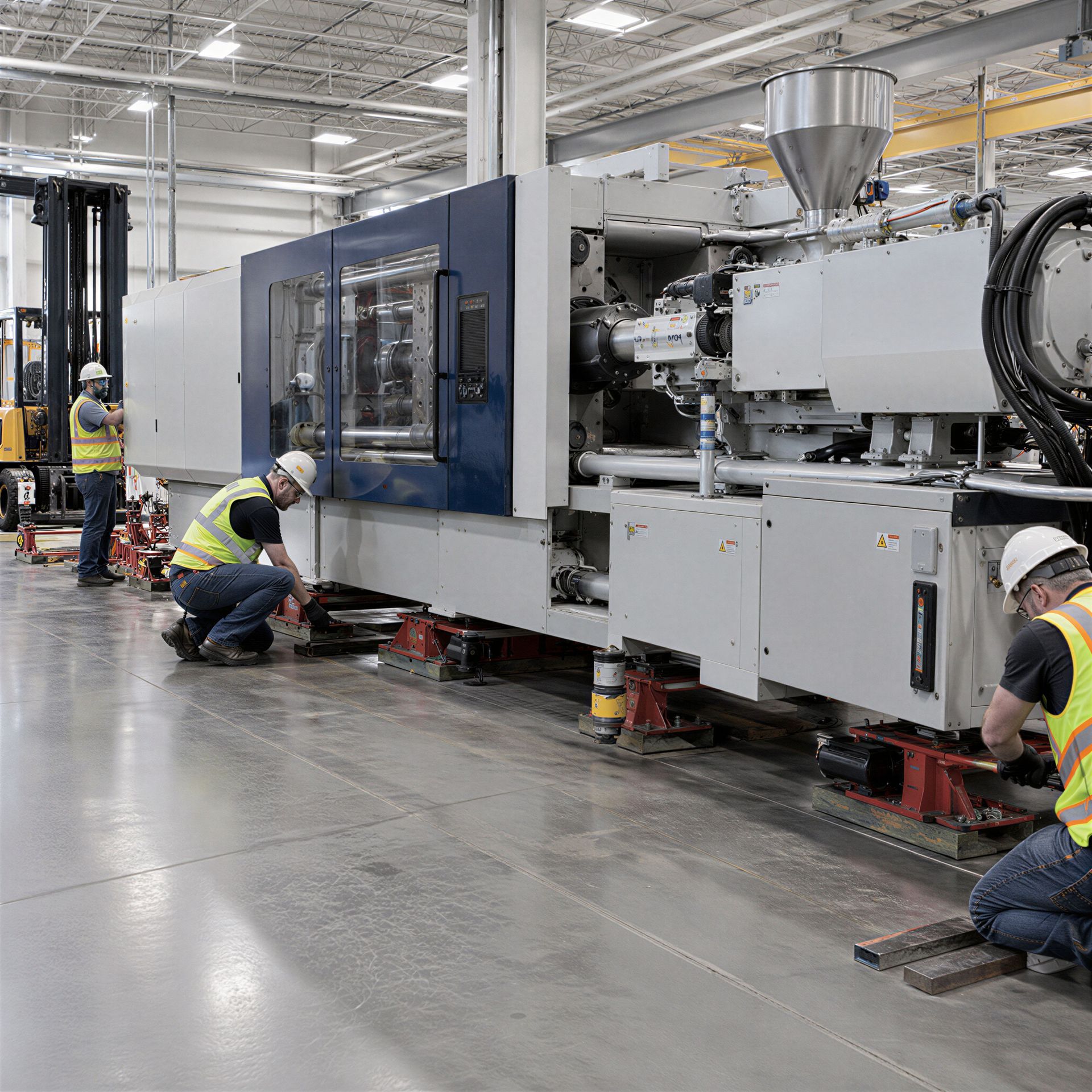

Machinery Skates
Machinery skates allow heavy molding equipment to be moved across suitable plant floors after the machine has been lifted and properly supported. Skates can be especially useful for final positioning where forklift access is restricted.
Specialized Moving Systems
Air casters, jacking systems, cribbing, and other specialized equipment may be incorporated when facility conditions or machine configurations require alternative moving methods.
Transportation & Logistics
Plant-to-plant injection molding machine relocations require careful coordination between rigging and transportation.
Silver Lake Industrial Services can coordinate loading, securement, transportation, and unloading so that the equipment-moving process remains integrated from origin to destination.
Large or oversized machines may require specialized trailers, route planning, or additional preparation before transportation.
Foundation & Site Preparation
Successful installation begins before the machine reaches its final location.
Silver Lake Industrial Services can work with manufacturers and contractors to evaluate equipment placement, access requirements, and installation conditions before delivery.
For large injection molding machines, floor capacity, machine footprint, anchoring requirements, utility locations, and clearances should be considered before installation begins.
Precision Placement
Injection molding machines must be positioned accurately in relation to auxiliary equipment, automation, material-handling systems, and facility utilities.
Silver Lake Industrial Services uses controlled moving and positioning methods to place equipment according to the manufacturer's layout and production requirements.
Precise initial placement can reduce unnecessary repositioning and simplify the work required before startup.
Leveling & Mechanical Assembly
After positioning, injection molding equipment may require leveling, alignment, and mechanical assembly before utilities can be connected and commissioning can begin.
Silver Lake Industrial Services' millwrights can assist with machine assembly, leveling, and positioning of machine sections and related production equipment.
For molding cells involving robots, conveyors, or auxiliary systems, equipment can be positioned according to the planned production layout.
Safety Is Integrated into Every Project
Safety is built into every phase of an injection molding machine move. Before work begins, Silver Lake Industrial Services evaluates the equipment, facility conditions, access points, lifting requirements, and potential hazards to develop a safe, controlled rigging plan.
Our crews use properly rated rigging equipment, established communication procedures, and controlled work zones throughout lifting, moving, and installation. This disciplined approach helps protect personnel, equipment, and facilities while keeping the project moving efficiently.
Why Manufacturers Choose Silver Lake Industrial Services
Manufacturers trust Silver Lake Industrial Services for injection molding machine moving, rigging, relocation, and installation because we combine experienced crews, specialized equipment and careful project planning.
From a single molding machine to a complete production-cell or plant relocation, we coordinate each project to minimize downtime and safely position equipment for production. Our capabilities include turnkey project coordination, experienced millwrights and riggers, specialized heavy-moving equipment, and nationwide service.
Ready to Discuss Your Injection Molding Machine Project?
Whether you're installing a new molding machine, relocating existing equipment, reorganizing a production cell, or moving machinery to another facility, Silver Lake Industrial Services can coordinate the equipment and personnel required for the move.
Our team can evaluate your machine, facility conditions, production schedule, and relocation requirements to develop a plan for your project.
